What is Audio Clipping and How to Prevent It? The Ultimate Recording Guide

Learn the boundaries of digital audio, the science behind clipping, and how to fix audio distortion for a perfect mix.

Audio clipping is a form of waveform distortion that occurs when an audio signal exceeds the maximum volume capacity (the ceiling) that a digital or analog system can process, resulting in the peaks of the sound waves being "clipped" or cut off. This overdriven signal creates unwanted pops, crackles, and a harsh distortion that is highly unpleasant to the ear.

If you are new to music production, podcasting, or video editing, it is highly likely you will encounter audio clipping issues. In this guide, we will explore the limits of digital audio, the scientific background of the clipping problem, and how you can permanently solve it.

What is Audio Clipping and What Does 0 dBFS Mean?

In the digital audio realm, sound volume is measured in dBFS (Decibels relative to full scale). The absolute maximum limit for a digital audio signal is 0 dBFS. When a sound wave exceeds 0 dBFS, your computer or audio interface cannot process this data, and it abruptly shaves off (clips) the peak of the wave into a flat line.

As detailed in the audio engineering publications by the MediaTech Institute, 0 dBFS serves as the absolute digital ceiling; any signal pushed past this limit is mathematically clipped and severely distorted . This signal, which essentially turns into a square wave, produces that irritating "popping" or "crackling" sound that can damage both your speakers and the listener's hearing.

How to Prevent Audio Clipping? (Professional Solutions)

The definitive answer to preventing audio spikes is establishing proper Gain Staging during the recording and mixing phases. Here is a step-by-step guide on what you need to do:

Step 1: Leave Proper Headroom

When recording, ensure that your volume levels never hit 0 dBFS. Whether recording vocals or instruments, aim for an average volume around -18 dBFS, with your loudest moments (peaks) hitting somewhere between -6 dBFS and -12 dBFS. This will provide you with a safe "Headroom" to work comfortably during the mixing stage.

Step 2: Continuously Analyze LUFS and Peak Values

You should monitor whether your signal is breaching the ceiling using professional measurement tools, rather than relying on guesswork. To keep the audio limits of your track or podcast in the safe zone, you can use our completely free, browser-based LUFS & Peak Analyser tool. This tool measures the instantaneous peaks and overall perceived loudness of your audio file in seconds, warning you against potential clipping.

Step 3: Use a Sound Optimizer

Extreme frequency fluctuations in your sound waves can cause sudden, unwanted peaks. To eliminate imbalances in your audio, adjust EQ settings, and improve overall quality, you can use our Sound Optimizer tool to sculpt a safe, broadcast-ready audio profile.

Audio Distortion Correction: Can Clipping Be Fixed Later?

Many content creators ask, "Can I fix distorted, clipped audio after it's been recorded?" There is a fundamental rule in the digital world: Garbage in, garbage out. While there are specialized "De-Clipper" restoration software designed to mitigate mild clipping, attempting heavy audio distortion correction usually ruins the natural tone of the audio and leaves behind digital artifacts (unwanted synthetic noises). It is mathematically almost impossible to perfectly restore the original rounded peak of a shaved-off sound wave; restoration tools merely guess (interpolate) and redraw that missing section. Therefore, the best correction method is preventing the issue during the recording stage.

Frequently Asked Questions

Can crackling in audio be fixed later?

Mild digital crackling and background microphone hums can be alleviated with EQ filters or specialized de-clipper restoration tools. However, severe crackling caused by heavy audio clipping cannot be 100% losslessly restored to its original state.

Does a limiter prevent clipping?

Yes. Placing a Limiter at the very end of your mix or mastering chain allows you to set an absolute ceiling (for example, -0.1 dB or -1.0 dB True Peak). The limiter squashes the audio just before it crosses this threshold, preventing digital clipping. However, using a limiter too aggressively can destroy the dynamic range of your music.

What is the difference between analog and digital clipping?

When audio limits are exceeded in analog hardware (tube amps, analog consoles), the resulting clipping produces a "harmonic distortion" (overdrive/saturation) that adds warmth and character to the sound. Digital clipping, on the other hand, is a pure mathematical error; it is extremely harsh, non-musical, and grating to the ear.

What should I do to avoid clipping when recording vocals?

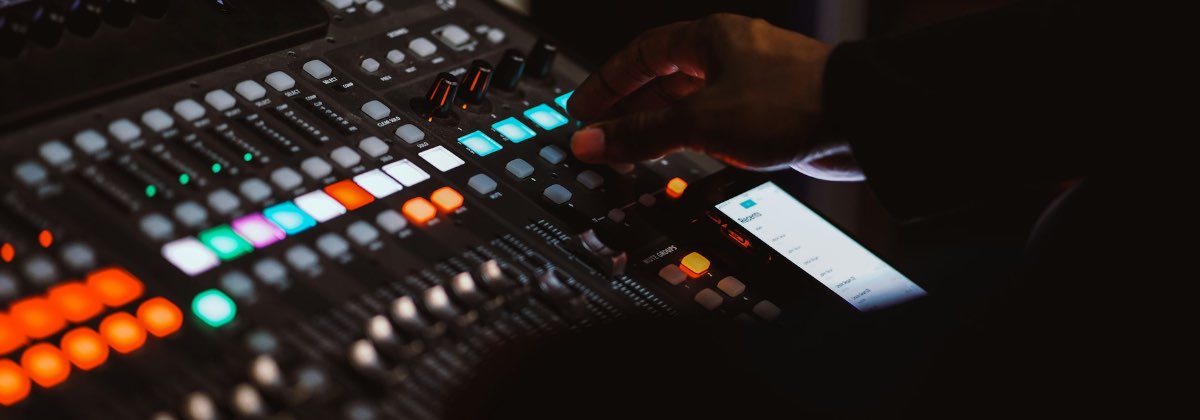

You need to turn down the "Gain" knob on your audio interface. Ensure that even during the moments you shout or speak the loudest, the meter in your recording software never crosses into the red zone (0 dB), ideally maxing out safely in the yellow zone (around -6 dB).

What is headroom and how does it relate to clipping?

Headroom is the safe safety buffer between the highest peak of your audio signal and the absolute digital limit (0 dBFS). Leaving adequate headroom ensures that even if your signal suddenly spikes, it won't crash into the 0 dBFS ceiling and cause clipping.

Is clipping done intentionally during the mastering stage?

In modern music production, particularly in EDM and Metal genres, "Soft Clipping" can be applied very precisely and in a controlled manner to achieve a more "aggressive" and loud sound. However, this is a deliberate process performed by professionals using specialized software (clipper plugins) to add character; it is entirely different from the uncontrolled, accidental digital pops that occur during bad recording sessions.
